Europanel®

- Europanel® F5 Extra
- Europanel® S5 Extra

Application

The Europanel® Range consists of architecturally insulated sandwich panels that deliver an aesthetically appealing building solution. This range is suitable for facades with specific fire and acoustic performances. Europanel® F5 Extra features a flat visual finish, whilst Europanel® S5 Extra is supplied with a satin line profile. Both Europanel® F5 Extra and S5 Extra can be supplied with a distinctive V-Groove profile. These panels can be installed vertically or horizontally across the building façade.

Standard Specification

  • Available in flat (F5 Extra) or satin line (S5 Extra) profile
  • Length: 1800mm up to 12500mm
  • Panels <1800mm long can be supplied subject to an extra charge
  • Lengths subject to verification for fire/structural performance
  • Width: From 600mm to 1200mm (UK and Mainland Europe)
  • 1000mm maximum width for export using shipping containers
  • Can be installed horizontally or vertically
  • 0.5mm or 0.7mm external steel face, in a range of coatings and colours
  • 0.5mm or 0.7mm internal steel face, in a range of coatings and colours
  • 115kg/m³ density stone wool core
  • CE-marked to EN 14509:2013

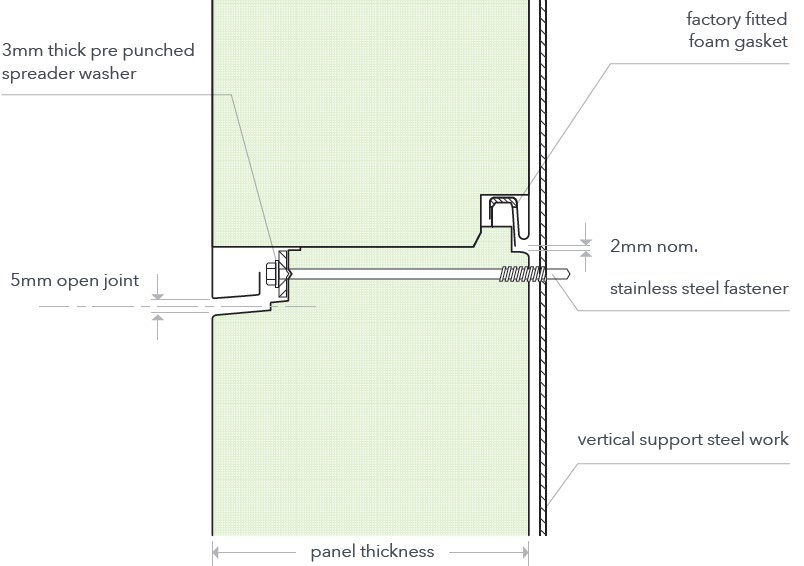

  • Secret-fix interlocking 5mm joint, creating a seamless finish

Fire Performance

Europanel® F5 Extra and Europanel® S5 Extra both offer Euroclass A2-s1, d0 classification for Reaction to Fire when tested in accordance with BS EN 13501-1:2018 and specified with Colorcoat Prisma® by Tata Steel.
Europanel® F5 Extra and Europanel® S5 Extra can also offer a fire resistance performance of up to 3 hours insulation and integrity (to BS EN 1364-1:2015) depending on thicknesses and orientation. Specific performances should be verified by the Technical Team on a project-by-project basis, to the correct standards.
