| Core Thickness (mm) | 40 | 50 | 60 | 70 | 80 | 100 | 120 |
|---|---|---|---|---|---|---|---|
| Overall Thickness (mm) | 75 | 85 | 95 | 105 | 115 | 135 | 155 |
| U-Value (W/m2K) | 0.43 | 0.35 | 0.29 | 0.25 | 0.22 | 0.18 | 0.15 |
| R-Value (m2K/W) | 2.32 | 2.86 | 3.43 | 4.00 | 4.50 | 5.50 | 6.66 |
| Weight (kg/m2) 0.5 steel / 0.4 steel | 9.90 | 10.03 | 10.70 | 11.20 | 11.50 | 12.30 | 12.70 |

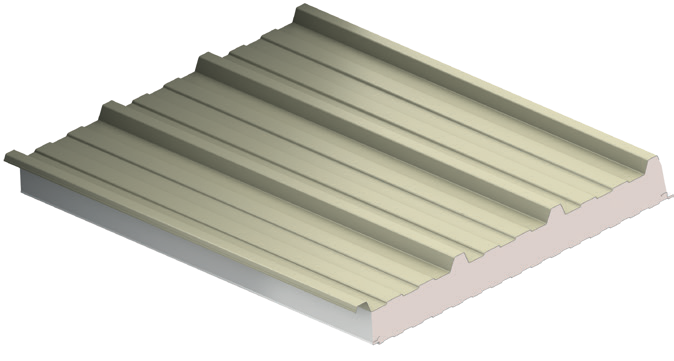

Life Cycle Assessment study (LCA) and Environmental Product Declaration Certificate (EPD) for the KSD1000RW Roof Panel are currently undergoing development.
| Tolerances | |
|---|---|
| Cut to Length | ± 5 mm |
| Cover Width | ± 2 mm |
| Thickness (Core ≤ 100mm) | ± 2 mm |
| Thickness (Core > 100mm) | ± 2% |
| Deviation from Squareness | ≤ 0.6% of the nominal cover |
